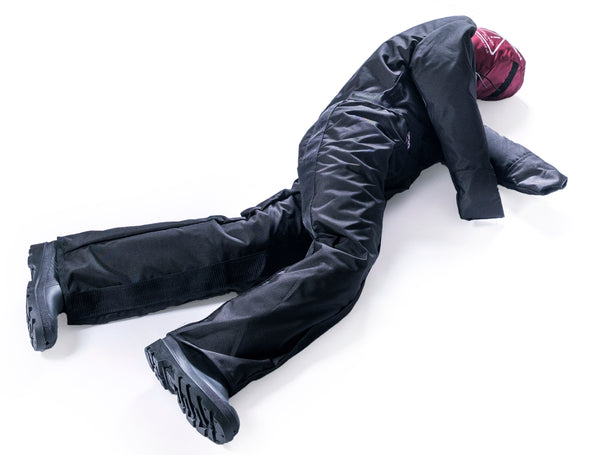

The most versatile manikin for all rescue scenarios typically practiced by emergency rescue professionals including: Confined Space, USAR, Chemical/Biological Hazard, Road Traffic Collision (RTC) & general handling exercises - ensuring effective, realistic training.
They are weighted to produce an anatomically correct weight distribution and the 'feel' of an unconscious patient. Crucially, these dummies totally eliminate the risk of pinch welts and bruising being inflicted on trainees, a common injury when using plastic bodied dummies which usually have hard limb joints - for example when a hard knee joint folds over the forearm of a trainee. Our dummies have soft outer layers and have no hard joints - in fact, you can forcibly wrap a knee joint around a trainee's forearm with no risk of injury.

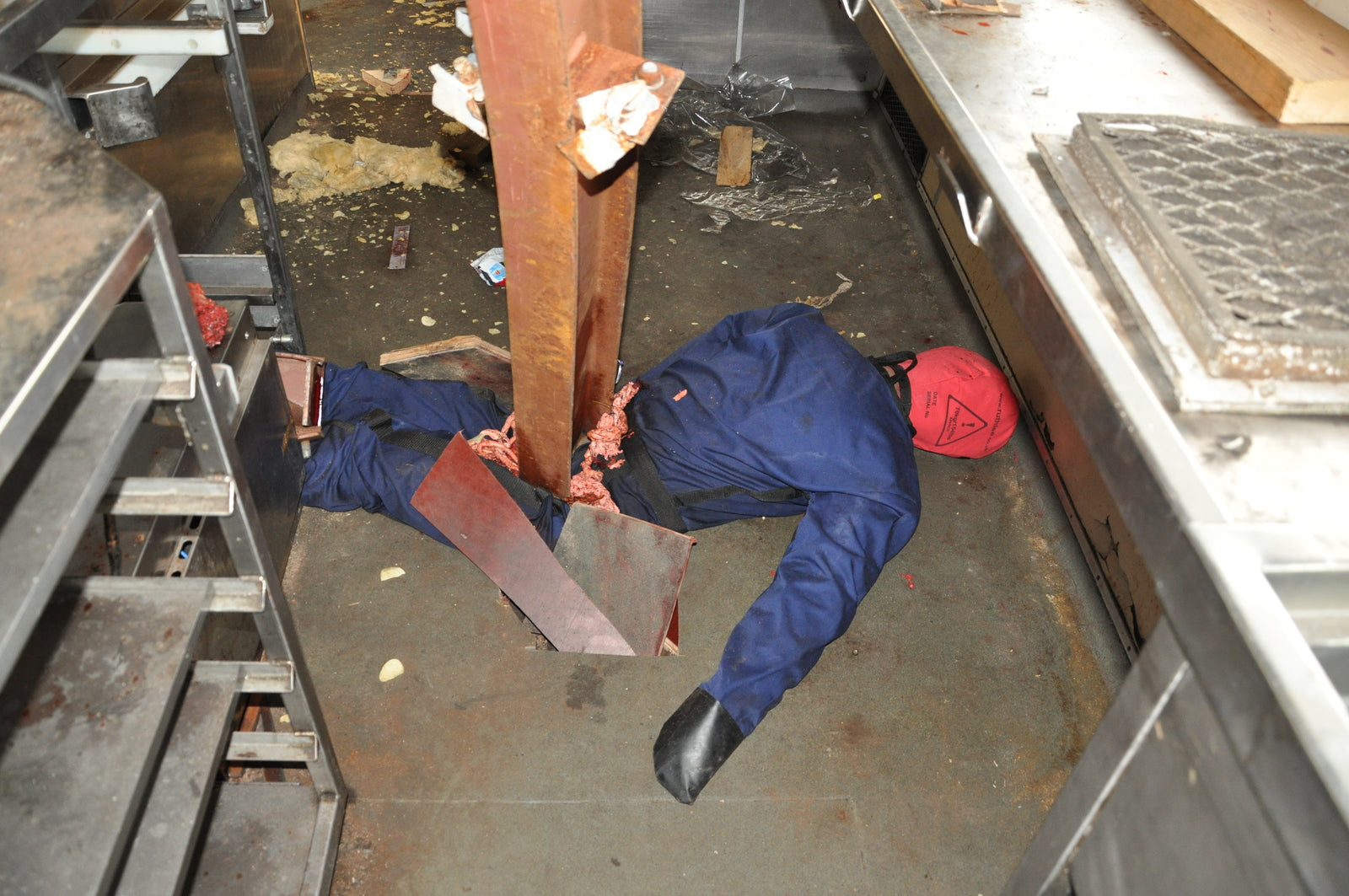

Available in 12 different sizes and weights from the baby 5kg up to the very heavy 90kg Adult. We also have a special 100kg version used for drop testing of harnesses, or just if you require a really heavy dummy! These dummies are tough enough to be buried under concrete, have steel lintels, concrete slabs, trees or motor vehicles laid upon them to present realistic scenarios for rescuers. Try that with one of those moulded plastic body dummies!

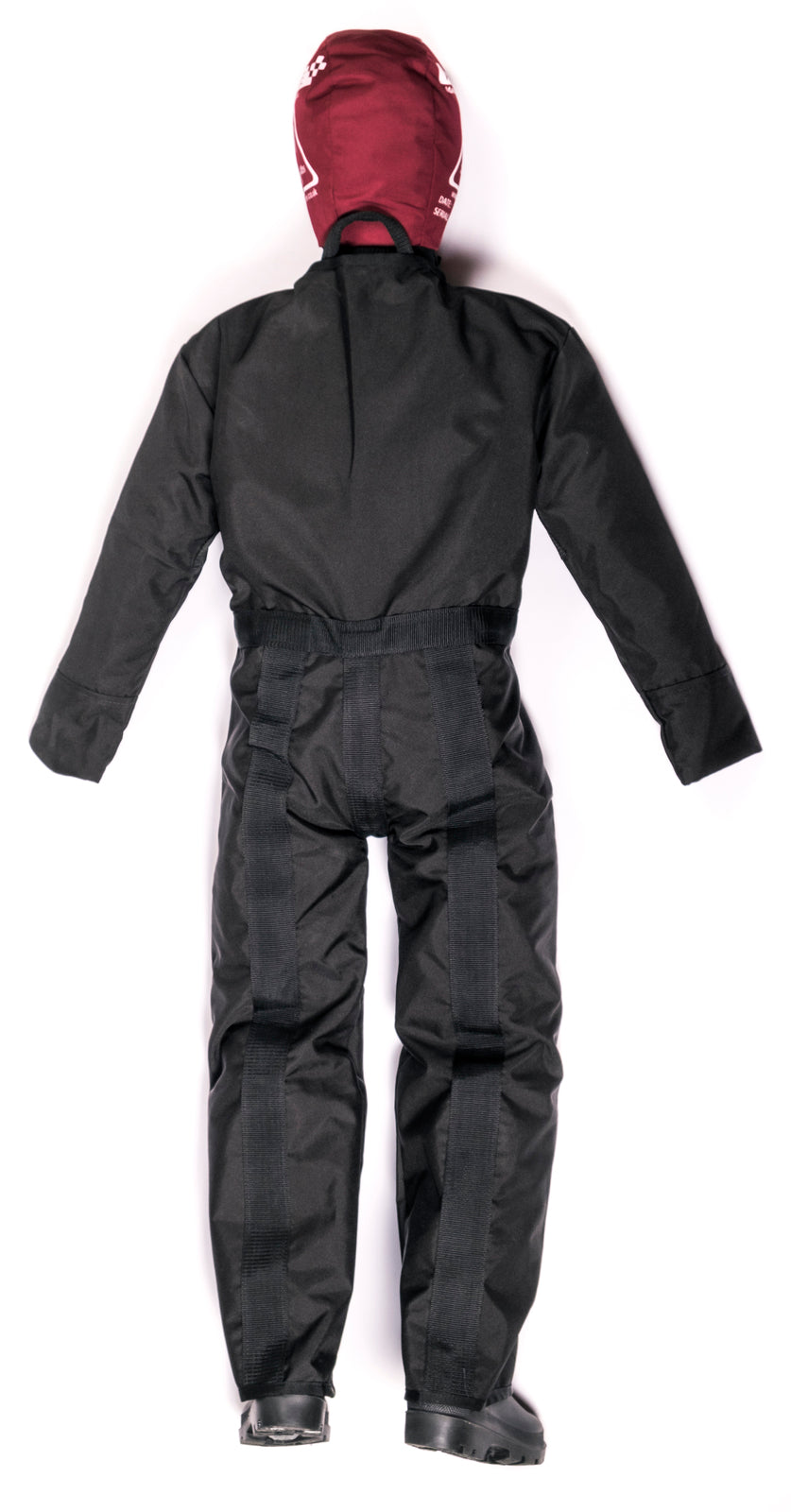

The protective overalls keep the dummy clean and greatly increases the lifespan. The overalls are made of tough polyester material, (the same material as used on ballistic/stab jackets,) with high-density polypropylene webbing double stitched in the identified high-stress areas. The machine-washable overalls are fitted to all sizes of the dummy. The General Duty dummies can be used in temperatures up to 100ºC. Above this temperature or where 'flash-over' may occur we recommend using our Fire House flame retardant rescue dummy.
All training dummies of 20Kg and over are supplied complete with gumboots. The boots protect the legs if the dummy is dragged along the ground. The General Duty dummy is ideally suited to either wet or dry rescue conditions. If it gets wet it needs to be hung in a dry airy place to dry before storage. All dummies are screen printed with a warning triangle, a handling risk note and space for you to record the asset number the date of purchase on the head. These dummies have been issued with NATO stock numbers and are standard issue to armed forces around the world.
The flexible inner core is weighted to human proportions using 2kg packets of 5-10 mm crushed, washed stone aggregate. The weight packets are then sewn into a nylon inner, with all these body parts (arms, legs, chest etc) tied to the outer carcass using polypropylene rope. This method of construction prevents 'slumping' of the weight pouches and allows the dummy to maintain its shape when in use. These inner components are separated and padded using 25mm polyurethane foam contained in nylon liners which results in a dummy with the life-like feel of a real casualty. High-density polypropylene webbing provides extra strength and durability, especially at the high-stress points.
New Thermal Suit available to fit all of our adult General Duty dummies allowing instant thermal imaging capabilities.
The following General Duty Manikins are NATO compliant:
NATO STOCK NUMBERS -
RLN5 - 4240-99-8581987
RLN10 - 4240-99-0218800
RLN20 - 4240-99-2130513
RLN30 - 4240-99-8525913
RLN50 - 4240-99-9771707
RLN70 - 4240-99-2416796
RLN80 - 6910-99-858-3207
RLN90 - 6910-99-850-7387
And if you're wondering how tough they are...
- Anatomically correct weighting of limbs to replicate the 'feel' of an unconscious patient.
- Unbelievably tough - drop from 15 - 20m or run it over with a vehicle.
- Double stitched polyester replaceable overalls protect your manikin.
- Use in dry, wet or HAZMAT conditions.
- Different weights and sizes, including a 10kg dog!
- The 50kg Duty comes in two heights; 1.8m and 1.5m, to represent male and female.
- A loop at the back of the neck allows the manikin to be hung up and hosed down after use.
- Lots of accessories available. Add the 'Shoutbox' to convert it to a USAR manikin.
|Shipping Weight||100000 kg|
|Unit Of Measure||1|
